Rugged, I/O-Rich NVIDIA Jetson Solutions for Industry

Diamond Systems offers a versatile line of carrier boards, subsystems, and box systems for the complete Jetson Orin line of GPU modules. Products are available in various levels of integration to fit your needs. Many products feature enhanced ruggedness for improved reliability in harsh environments. We also maintain a robust custom solutions program to adapt our design and manufacturing capabilities to your unique situation.

All Diamond Jetson Orin solutions run the latest JetPack 6.2 with Super Mode. Products containing integrated Jetson modules have the operating system pre-installed and ready to run.

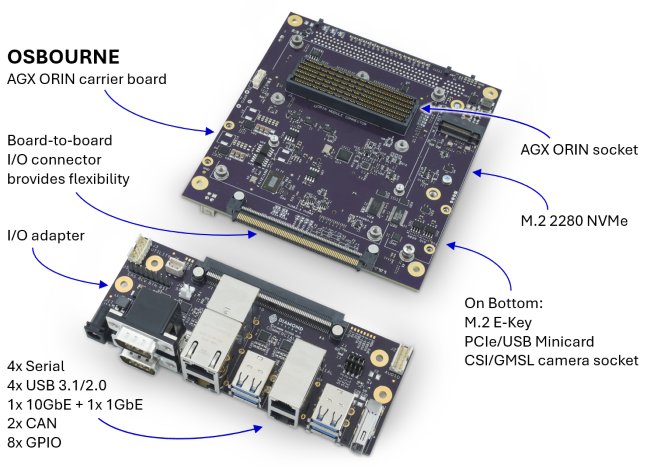

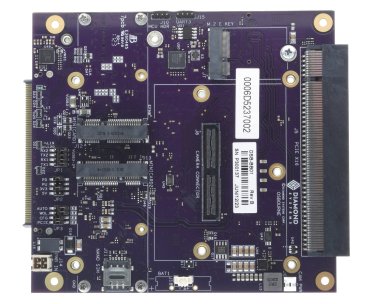

OSBOURNE

Carrier board and subsystem with interchangeable / customizable I/O adapters

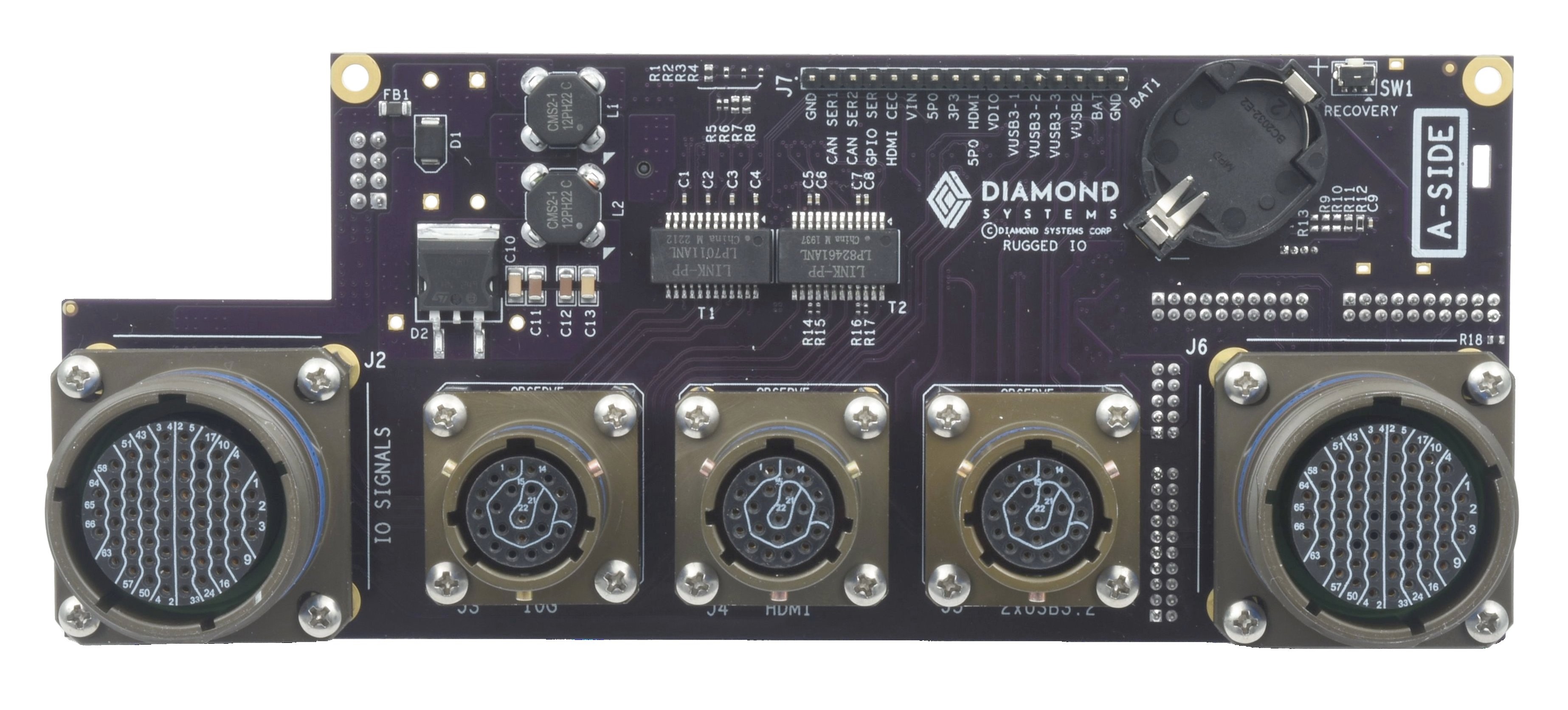

This off-the-shelf MIL-DTL-38999 connector board OSB-PNLR02 enables Osbourne to be used in ultra-rugged systems.

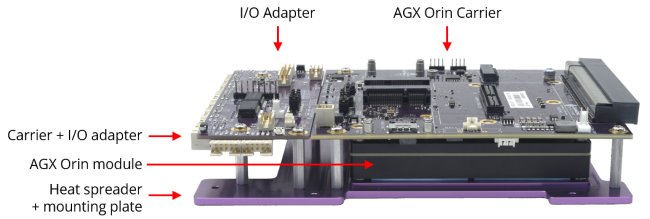

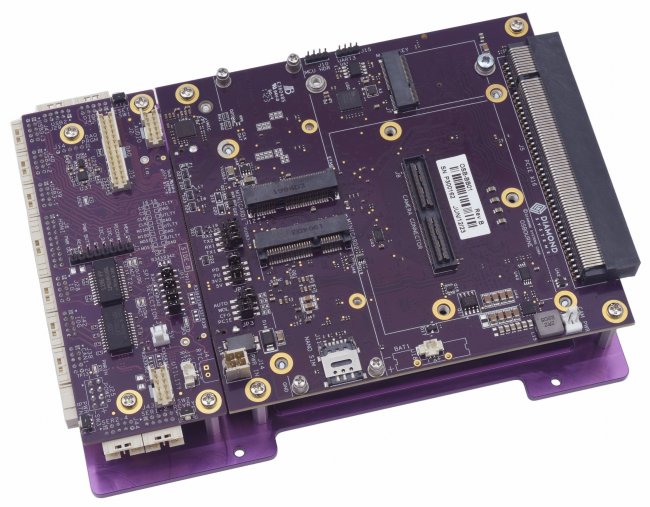

OSBOURNE-ER

Enhanced reliability subsystem targeting rugged and vehicle applications features integrated heat spreader and latching I/O connectors

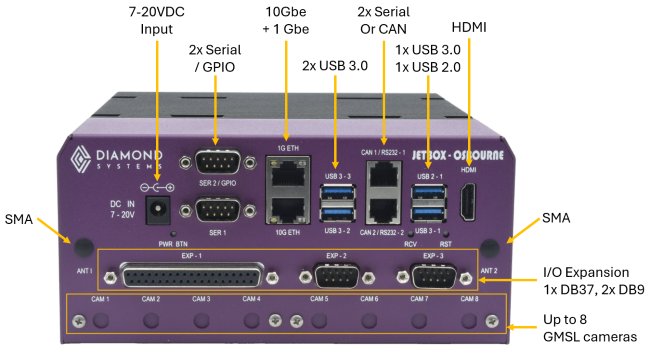

JETBOX-OSBOURNE

Industrial grade complete solution with support for up to 8 GMSL cameras

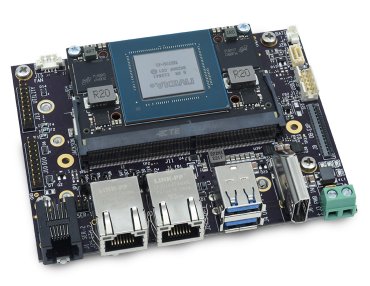

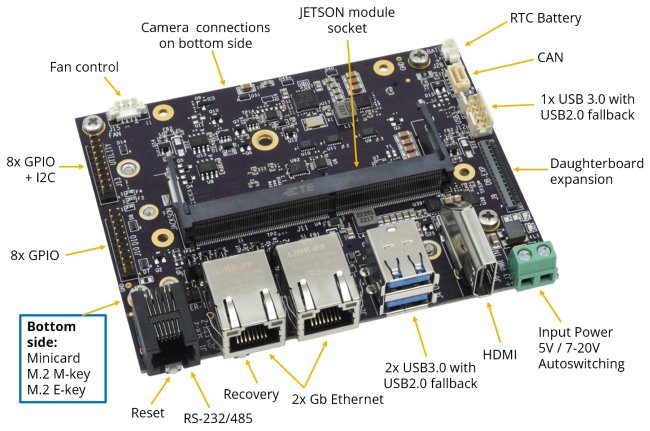

JACKSON

Compact carrier board and subsystem

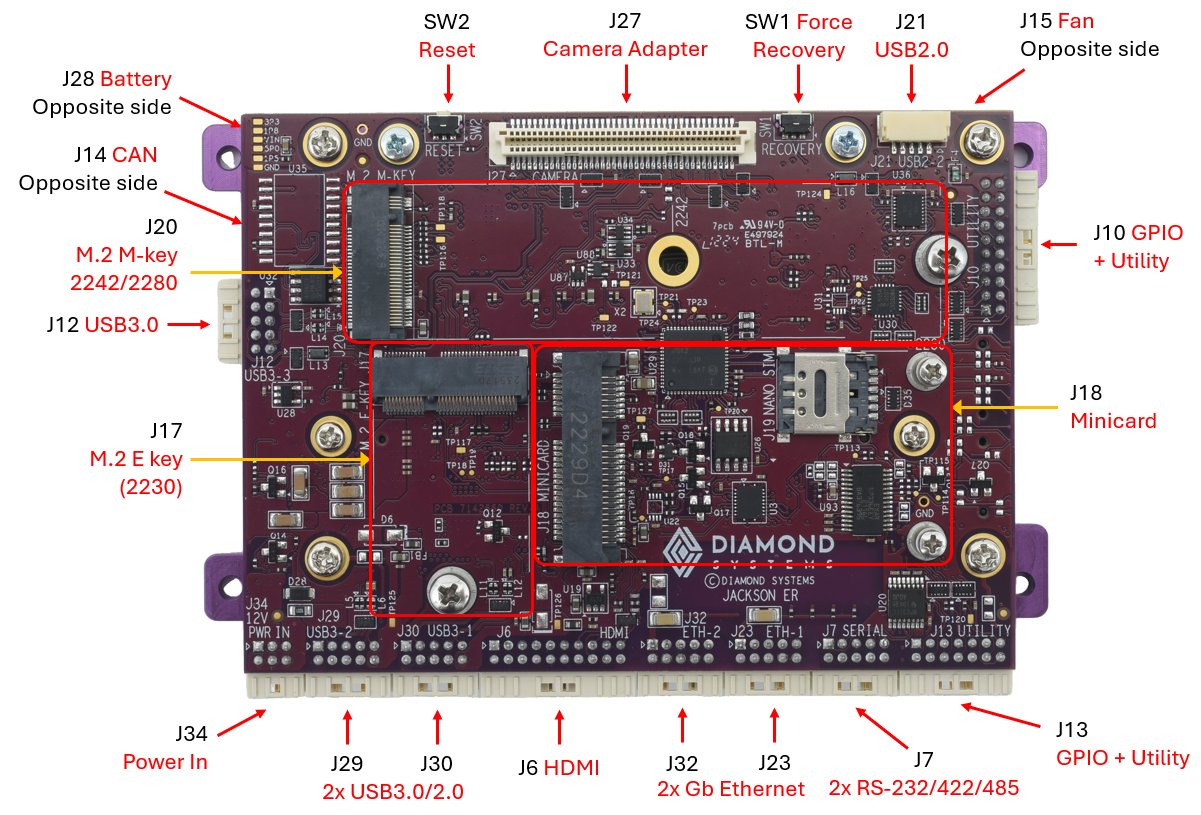

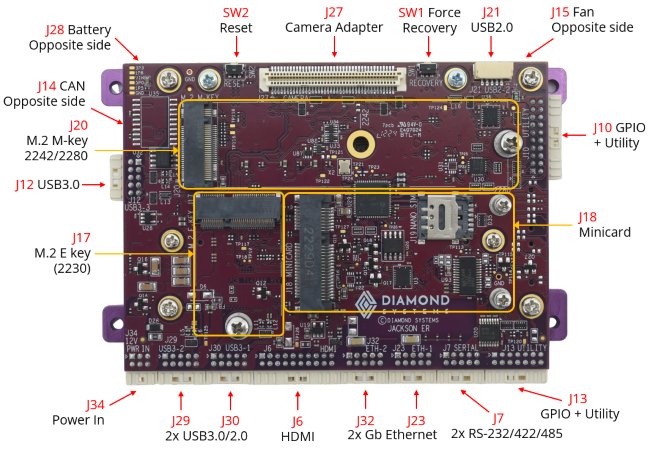

JACKSON-ER

Enhanced reliability subsystem targeting rugged and vehicle applications features integrated heat spreader and latching I/O connectors

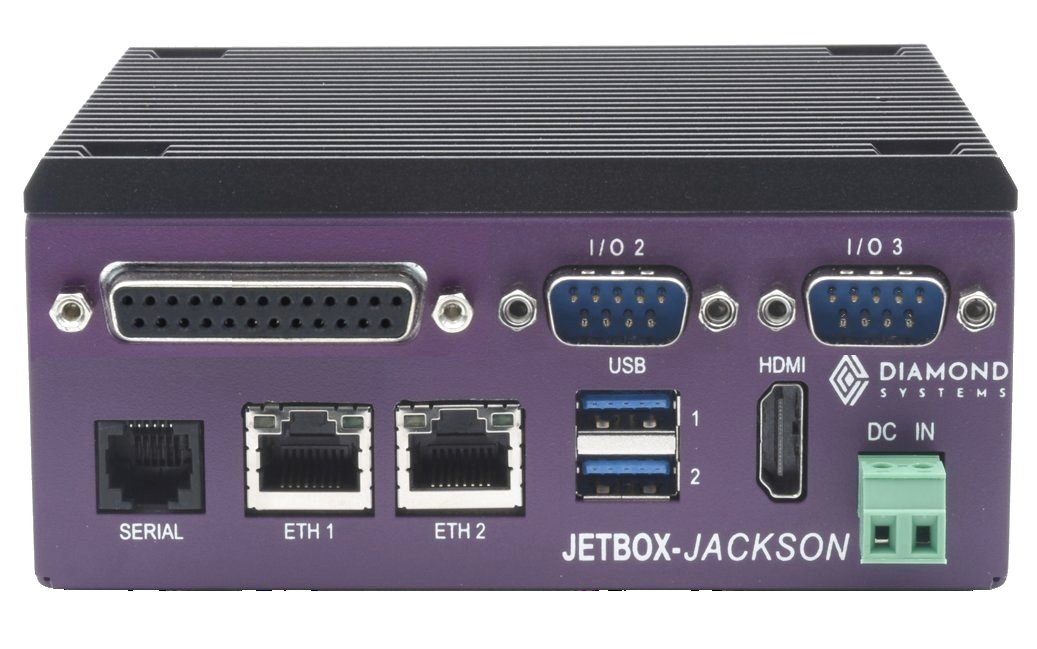

JETBOX-JACKSON

Industrial grade complete solution

Custom NVIDIA Jetson Carriers

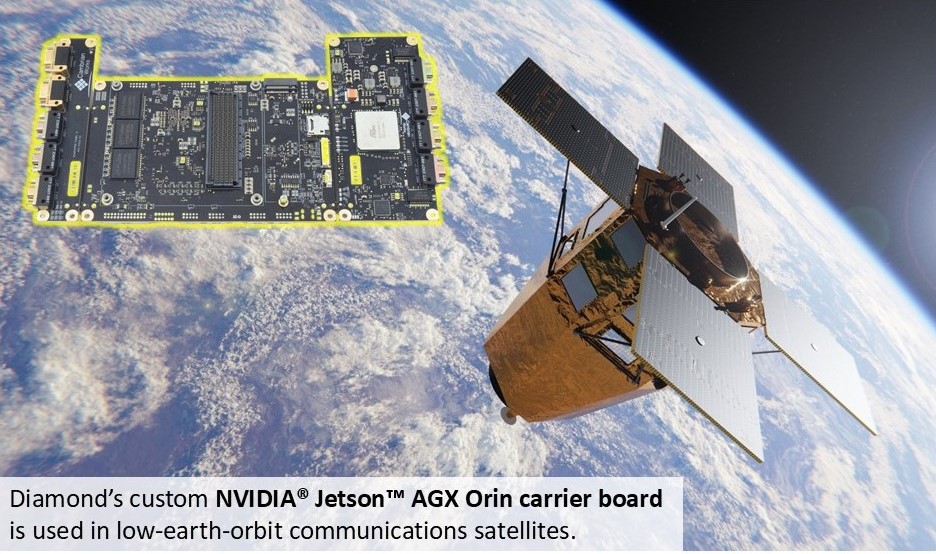

Custom AGX Orin carrier with enhanced Ethernet and serial connectivity used in low earth orbit satellites

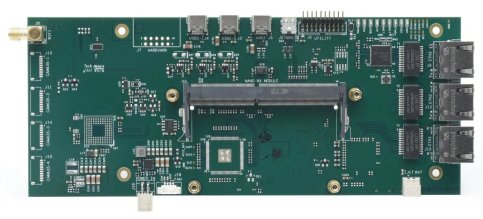

Custom Xavier NX carrier with integrated Ethernet switch used for building entrance control

Diamond Systems Product Guid

Single Board Computers

Product	CPU / Memory	Display	I/O	Data Acquisition	Form Factor	Cooling	Temp Range

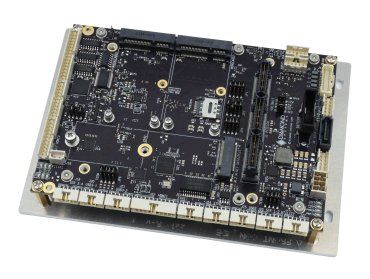

Jasper	Core i7 1185G7E/1185GRE with 32-64GB RAM	2x HDMI up to 4K; LVDS	2 Gigabit Ethernet, 2 USB 2.0, 3 USB3, 4 RS-232/422/485	Optional Data acquisition with 16 A/D, 4 D/A, 16 GPIO	3.5 inch	Heat spreader	-40 to +85C

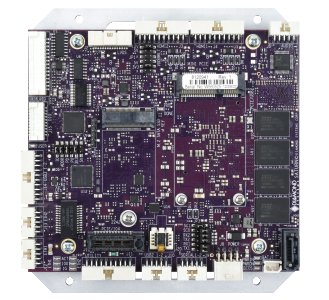

Saturn	E3940 4GB, 8GB ECC	2x HDMI LVDS	2x Gige 2x USB 2.0 2x USB 3.0 2x RS-232/422/485 1x RS-232	16 A/D 16 bits 4 D/A 16 bits 22 DIO 3.3/5V	4.5”W x 4.0”H 114x102mm	Heat spreader	-40/+85C

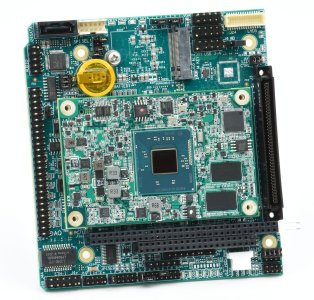

Athena IV	E3845 / 4GB E3940 / 8GB	LVDS VGA	2x Gige 4x USB 2.0 1x USB 3.0 4x RS-232/422/485	16 A/D 16 bits 4 D/A 12 bits 24 DIO 3.3V	4.2″W x 4.5″H 106x114mm	Heat sink	-40/+85C

Ethernet Switches

Product	Description	Copper Ports	Fiber Ports	Form Factor	Dimensions

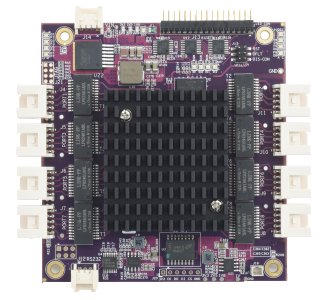

EPS-8130	Managed 8-Port Gigabit Ethernet Switch	8		PC/104 3.55 x 3.775″	3.55 x 3.775″

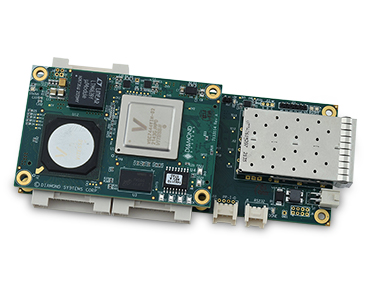

EPS-12002L	Compact 12+2 port managed Ethernet switch with 2 10Gbps SFP+ sockets	12 1Gbe	2 MGbe 1/2.5/5/10Gbps	Custom	5.4 x 2.2″ / 136 x 55mm
EPSM-10GX	Layer 2+ / Layer 3 managed 28-Port Gigabit Ethernet switch module	24	4 10G	COM Express Mini	84x55mm / 3.3×2.2”

NVIDIA™ Solutions

Product	Jetson Module	Camera	I/O	DAQ	Expansion / Storage	Size
Osbourne	AGX Orin	8x CSI 2-lane	1x HDMI, 4x serial, 3x USB 3.2, 4x USB 2.0, 1x 10GbE, 1x 1Gbe, 2x CAN	8x GPIO 3.3V	M.2 2280 NVMe PCIe x4	4.7 x 4.5” / 120 x 115mm
Jackson	Orin Nano & NX	8x MIPI/CSI via camera adapter connector	2x Gbe, 3x USB 3.0, 1x USB 2.0, 2x serial, 1x HDMI, 1x CAN	16x GPIO 3.3V/5V	M.2 M-Key 2242/2280 NVMe, M.2 E Key 2230, PCIe Minicard, daughterboard expansion connector	4.33×3.35” / 110x85mm
Jackson-ER	Orin Nano & NX	8x MIPI/CSI via camera adapter connector	2x Gbe, 3x USB 3.0, 1x USB 2.0, 2x serial, 1x HDMI, 1x CAN	16x GPIO 3.3V/5V	M.2 M-Key 2242/2280 NVMe, M.2 E Key 2230, PCIe Minicard, daughterboard expansion connector	4.33×3.15” / 110x80mm

System: Rugged / Industrial

Product	Type	Description

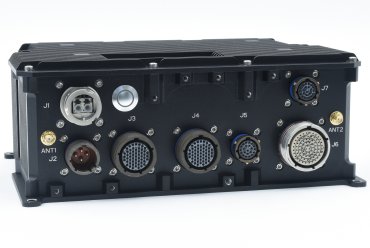

GEODE-Jasper	Mission computer	Quick-ship rugged systems based on COM Express, PCIe/104, and Minicards for easy I/O expansion and performance scalability
GEODE-Osbourne	Mission Computer	Quick-ship expandable rugged AI-at-the-edge system featuring NVIDIA Jetson AGX Orin GPU module

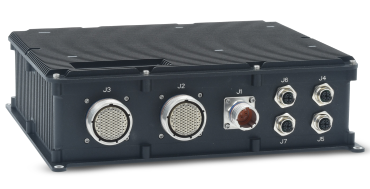

SabreNet 24000	Ethernet Switch	Rugged switch with 24 1Gbps copper ports and 4 10Gbps copper / fiber ports

I/O: Analog/Digital/Serial/Ethernet/CAN

Product	Description
Diamond-MM-32DX-AT	32-Channel Analog I/O PC/104 Module with Advanced Automatic Autocalibration

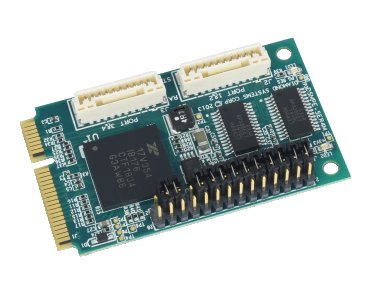

DS-MPE-SER4M	4-Port High Speed Serial PCIe MiniCard Module

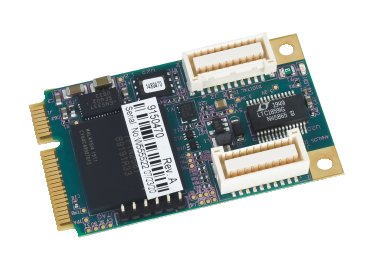

DS-MPE-DAQ0804	Analog I/O PCIe MiniCard Module
